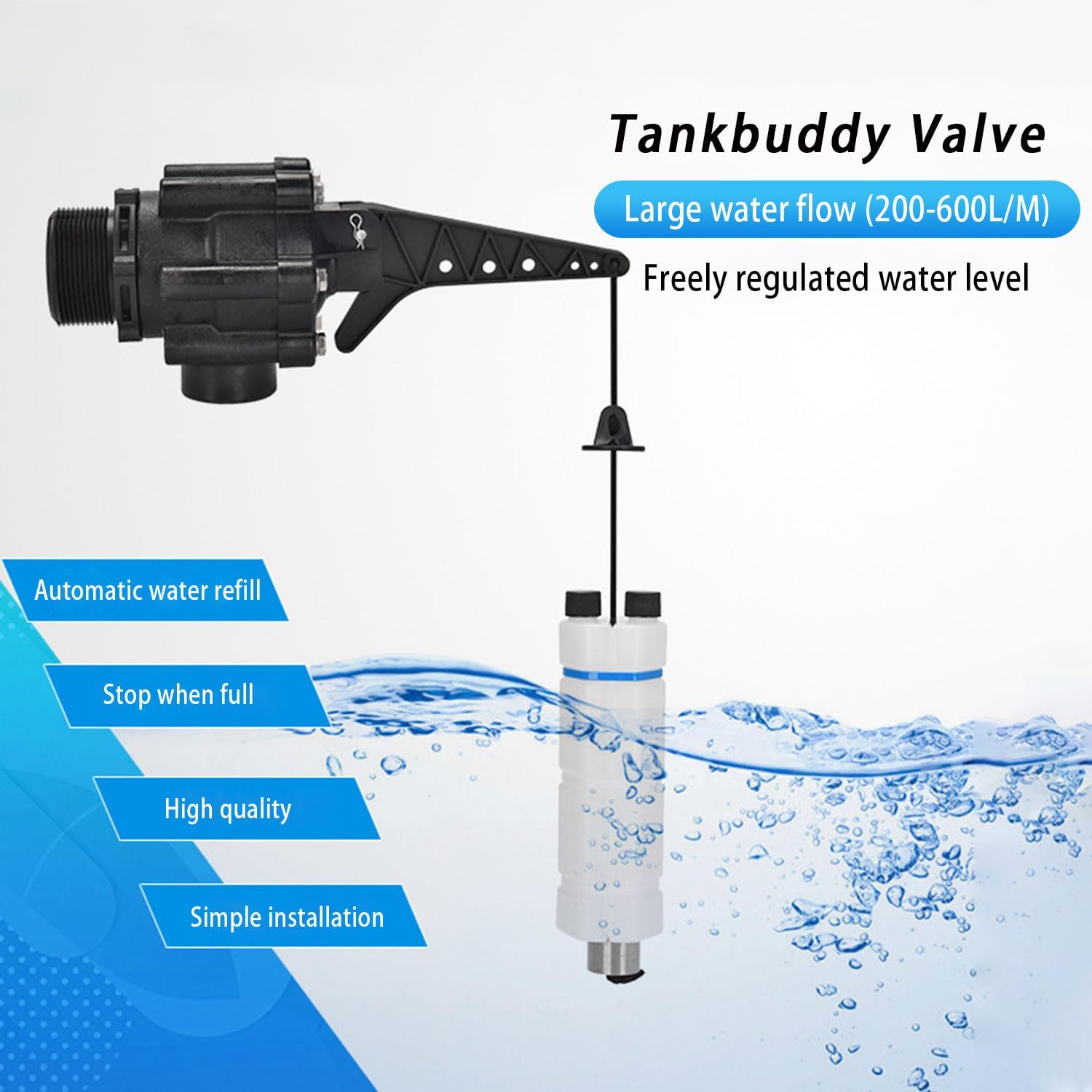

3/4‘’Tankbuddy Valve High Flow Large Water Discharge Float Valve Double Water Level and Adjustable Water Level (0.75 Inch(TB20))

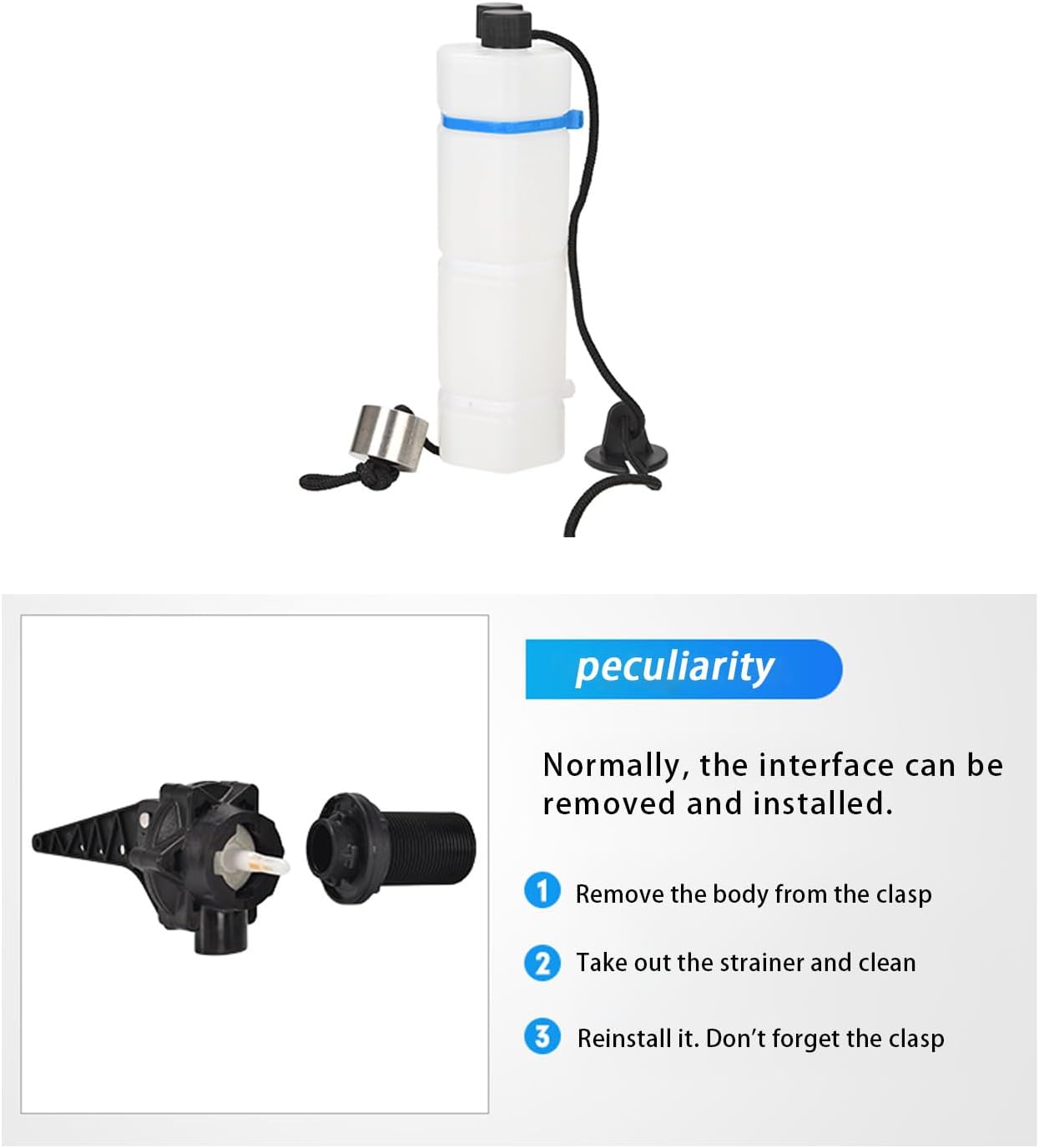

Installation Instructions 1. Flush Debris from pipelines thoroughly before fitting 2. Ensure valve is mounted horizontally in tank with outlet pointing down 3. Use thread seal tape on Inlet thread 4. Inject water into floats up to water limited line 5. Set level stopper at desired approximate lower on position and tie off cord at end of arm. (Use double hole end loop system for easy adjustment and tie off) 6. Ensure float is in correct position between stops 7. Set adjustable level adjuster for desired off position 8. Cut off excess cord to desired length.

• The valve gives a level difference which is adjustable from 50mm up to 2.5m to minimise starting and stopping of running water or the pump system(Level difference accept Customization).
• High flow,The water level difference can be freely adjusted(50mm to 2.5m), Keeps pump operation to a minimum(save resources), Valve Seal Access System for quick access to valve seal, Ideal for all makes and models of tanks.
• Water tank, Water tower, Irrigation, Animal drinking, Sprayequipment, Swimmingpool etc(Wide application scenarios).
• According to the different sizes purchased, first install them onto the device. When the water level rises to the water level line you have set, the valve will automatically close due to buoyancy reasons.
• Instruction is included in the package. You can install and use it according to the instruction. If you have any after-sales questions, please feel free to contact us.
